WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate

تمام دسته ها

سیستم کنترل دسترسی درب وای فای

چراغ راهنمایی و رانندگی سیگنال

خواننده RFID Mifare 13.56 MHZ

با ما تماس بگیرید

Mr. David

marketing@jutaigateaccess.com

+86 13143400257

13143400257

حالا تماس بگیرید

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate

نام تجاری:	JUTAI
شماره مدل:	GL- WLAN
مقدار تولیدی:	پشتیبانی از 1-10 عدد برای نمونه
قیمت:	قابل مذاکره
جزئیات بسته بندی:	کارتن
شرایط پرداخت:	T/T، Western Union، Wechat، Alipay، Paypal

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن چین

گواهی:

ورودی برق:

DC 12-24V/1A (5V قابل تنظیم)

خروجی رله:

ترمینال مشترک مشترک 2/3 کانال

بارگذاری کنید:

DC 30V/2A، AC 220V/1A

رابط ها:

1×CAN، 1×RS485، 2×RS232

WIFI/4G + Buletooth

دمای عملیاتی:

-30 تا 80 درجه

قابلیت ارائه:

5000 عدد در ماه

برجسته کردن:

WiFi door access control system with encrypted connection,Smart access control for commercial estates,Real-time door status log system

Smart access control for commercial estates

Real-time door status log system

توضیحات محصول

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate

This advanced WiFi Smart Access Control Solution is specially optimized for large residential communities and expansive commercial estates, delivering comprehensive and intelligent access management to meet the complex demands of multi-entry and high-flow public areas. Built to support large-scale deployment, the system unifies scattered access points into one cohesive smart management framework, helping property teams standardize daily access arrangements and elevate overall site security with effortless daily operation.

Reliable encrypted connection runs through the entire data transmission process, fully protecting access data and control signals from external interference and unauthorized access. Rigorous backend permission hierarchy brings scientific and classified management to daily operations, enabling administrators to set differentiated access rights for staff, residents, temporary visitors and other user groups. This layered management model maintains orderly entry rules, simplifies daily authorization arrangements, and ensures every access link stays safe and well-regulated across large property areas.

The system captures real-time door status logs to record every access action and equipment operation status around the clock. Complete and traceable historical records support daily inspection and regular management review, reducing reliance on manual checking and repetitive on-site patrol work. With flexible compatibility and simple system deployment, this access solution adapts perfectly to the complex layout of large communities and commercial estates. It stabilizes daily access order, simplifies long-term operation management, and offers a scalable, high-security smart access upgrade for modern large-scale property management.

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 0


GL-WLAN-01	GL-WLAN-02	GL-WLAN-03

JUTAI GateLink Smart Controller & Camera Core Parameter Summary

General Controller Specifications (All Models)

All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.

Model-Specific Controller Parameters

GL-WLAN-01 (2-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Relay output: 2 channels with shared common terminal
Load rating: DC 30V/2A, AC 220V/1A
Dimensions: 109.5 × 41.1 × 25.6 mm

GL-WLAN-02 (4-Relay WiFi Controller)

Power input: DC 12-24V/1A (5V customizable)
Expansion port: 1 × RS485
Relay output: 3 shared common channels + 1 independent channel
Load rating: DC 30V/1A, AC 125V/1A
Dimensions: 96.5 × 50 × 31.4 mm

GL-WLAN-03 (4-Relay 4G Controller)

Power input: DC 12-48V (max peak voltage 60V)
Communication: 4G + WiFi + BLE triple-mode
Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232
Input: 4-channel isolated digital input
Relay output: 4-channel independent NO/NC output
Load rating: DC 30V/10A, AC 220V/10A (high-power support)
Dimensions: 135 × 80 × 40 mm

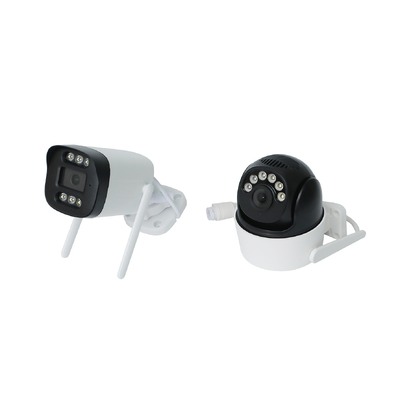

Camera Pixel Parameters

GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)
GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)
JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 4

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 5

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 6

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 7

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 8

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 9

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 10

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 11

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 12

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 13

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 14

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 15

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 16

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 17

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 18

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 19

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 20

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 21

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 22

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 23

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 24

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 25

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 26

WiFi Smart Access Control Solution Encrypted Connection Real-Time Door Status Log Backend Permission Hierarchy for Large Community & Commercial Estate 27
